Active Key AK-100/24 AK-100/24 24 Keys Programmable Keyboard

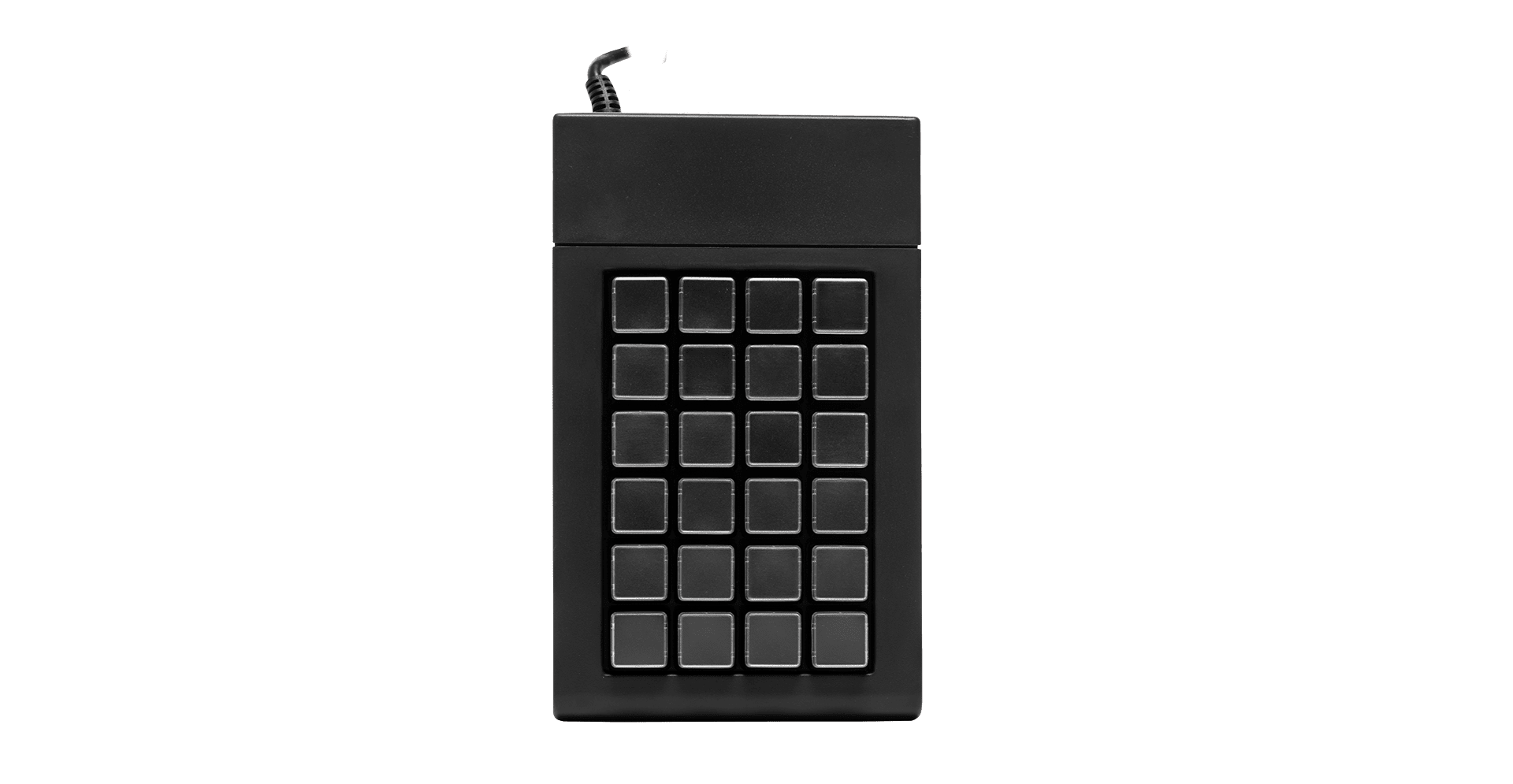

Active Key AK-100/24

AK-100/24

24 KEYS PROGRAMMABLE POS KEYBOARD

The AK-100-UW-24 Series is a high quality, high reliable Point of Sale Keyboard. Internal metal plate for key fixation grants long lasting, ESD protection and allows easy replacement of damaged keys. Each key can be programmed with user defined sequences of key codes. The programming tool, Matrix Maker is included.

No special driver- software is required. The AK-100 Keyboard provides a true keyboard wedge function even without connecting the normal keyboard to the computer.

AK-S100/24 IN THE ACTIVE KEY ONLINE-SHOP

DETACHABLE
KEY CAPS

There are detachable key cap sets for our programmable POS keyboards to inscribe the keys indivdually.

Active Key Taste mit Tastenkappe und Beschriftung
Active Key AK-100/24

Sample

VARIABLE KEY SIZES – FLEXIBLE USE

The keys can be cumulated to single keys (2 or 4 groupings). Therefore our programmable/POS keyboards are customizable and applicable in accordance with your purpose.

FEATURES

  • 24 Key POS Keyboard

  • MX Gold Cross Point Key Technology

  • 50 million Actuations per Key

  • Fully programmable

Active Key AK-100/24 35 programmable Keys Internal metalplate for key fixation 50 million Actuations per Key
Active Key AK-100/24

PRODUCT IMAGES

SPECIFICATION

COMPATIBILITY

All systems supporting standard PS/2 or USB keyboards

Programmable Keys

24 Keys

Interface

USB or PS/2 (depending on version)

TEMPERATURE RANGE

Storage: –20º to +60º C
Operation: 0º to +50º C

Supply Voltage

5 V +5%/-10% through USB Port resp. 5V +/-5% through PS/2 Port

Current Consumption

Appr. 100mA (Low Power Device)

Dimensions

180mm x 105mm x 45mm

Weight

400g

Key Switch Technology

MX keys based on Gold Cross Point Technology

AVAILABLE ACCESSORIES

2 x 1 keys, 2 x 2 keys

Key Travel

Appr. 4+/- 0.5mm

AGENCY APPROVALS

CE, RoHS

Download Datasheet

Download Datasheet for the AK-100/24 in PDF-Format

Product­Presentation

POSKey Series
