AK-920S The cost-effective way to expand existing systems with Smart Card Applications.

AK-920S

USB Stand Alone Smart Card Reader

The AK-920S is a high quality, robust and highly reliable smart card reader with an excellent data transfer rate. It is designed for security applications such as access control in offices, healthcare, financial and public service environments.

The AK-920S-U is the ideal smart card reader for applications in the field of access control and data encryption with digital signature or online payment methods. The Gemalto Chipset stands for the highest level of compatibility and reliability with the default drivers included in BIOS and operating systems.

AK-920S IN THE ACTIVE KEY ONLINE-SHOP

FEATURES

  • Stand-Alone Smart Card Reader

  • Stable and Robust (appr. 350 Gram)

  • One Hand Operable

  • CCID compatible

  • PC/SC compatible

  • Gemalto Chipset CR20

One Hand Operable Stable and Robust (appr. 350 Gram) Stand-Alone Smart Card Reader

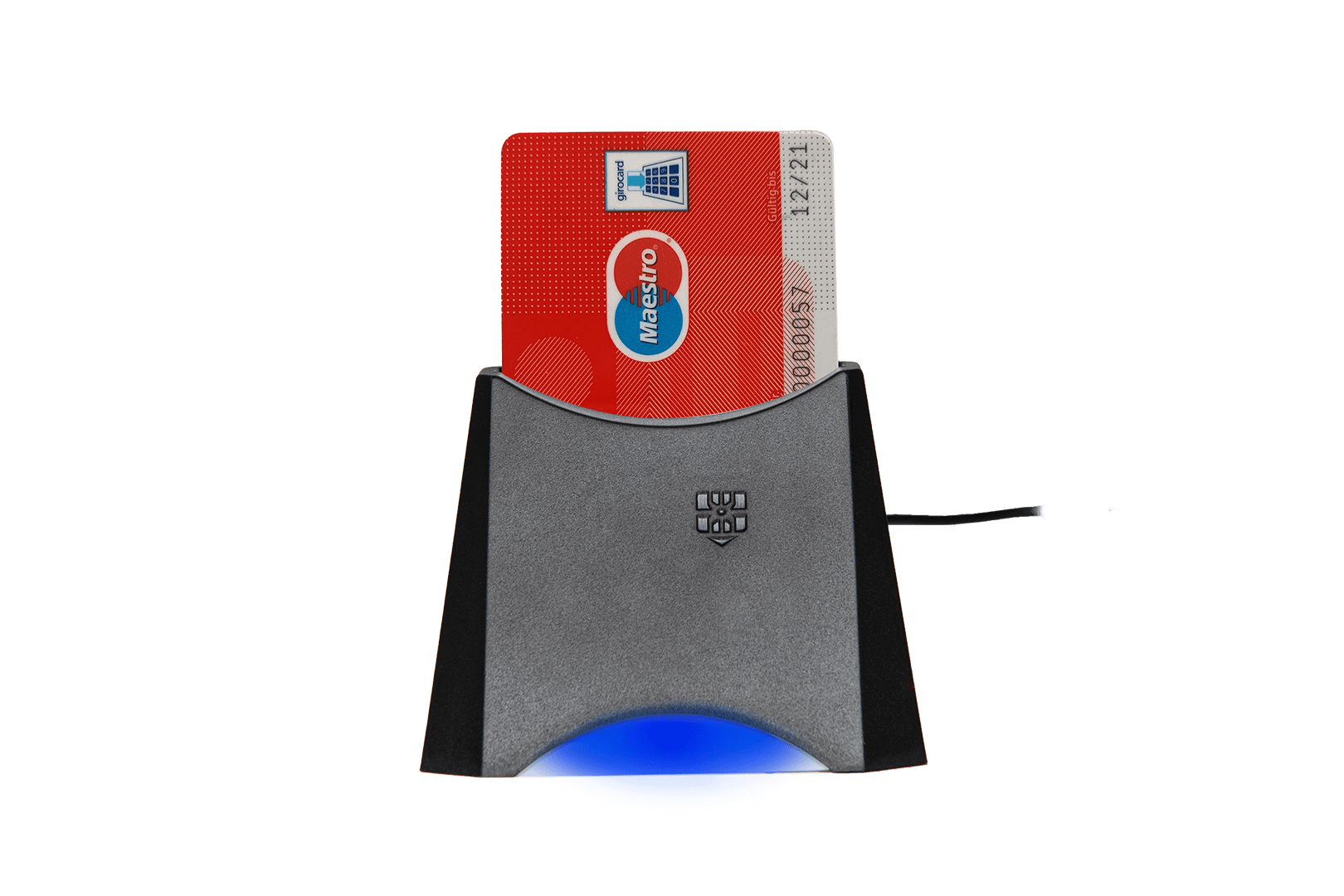

PRODUCT IMAGES

SPECIFICATIONS

Compatibility

CCID, Windows, Linux, MAC OSX, Solaris

System Interfaces

USB, PC/SC, CCID

Temperature Range

Storage: –20º to +60º C
Operation: 0º to +50º C

Supply Voltage

5V +-10% via USB Interface

Power Consumption

50mA (Low Power Device)

Dimensions

Appr. 80mm x 50mm x 60mm

Weight

Appr. 350g

Cable Length

Appr. 1,8m

Data Transfer Rates

Reader to Smart Card: up to 826 KBit/S
Reader to System: USB 2.0 Full Speed (12 MBit/S)

Smart Card Reader

Class A, B, C. ISO 7816 – 1, 2, 3, 4. T=0, T=1, Appr. 100.000 Operation Cycles

Agency Approvals

CE, FCC

Download Datasheet

Download Datasheet for the AK-920 in PDF-Format
